Knickschutztüllen

Knickschutztüllen KT

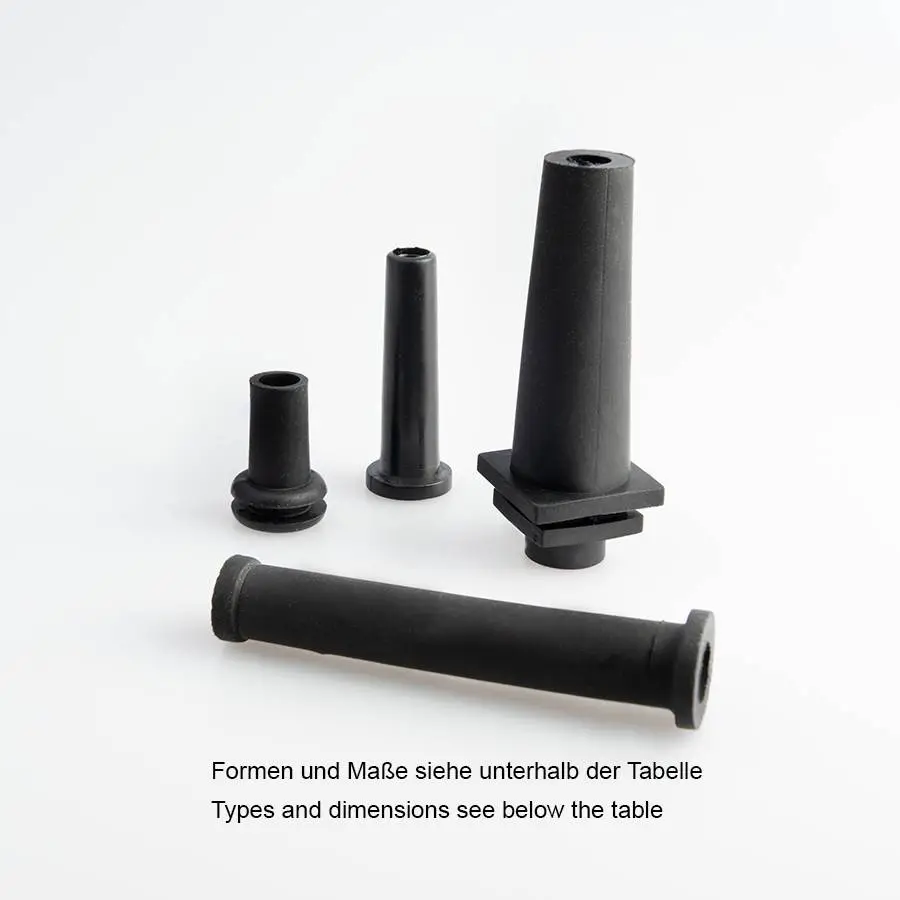

Knickschutztüllen bieten zusätzlichen Halt und Schutz für Kabel oder Drähte.

Material:

CR - Chloropren-Kautschuk / EPDM

Farbe:

schwarz

Hitzebeständigkeit:

-30° bis +90 °C

Aktuelle Seite drucken

Um ein Produkt anzufragen, klicken Sie bitte auf die entsprechende Artikelnummer in der Tabelle.

* EPDM Gummi, andere Materialien und Härtegrade (Shore A) auf Anfrage

detaillierte Skizzen siehe unten

Typ	Art.-Nr.	Form	ØA1 mm	ØA2 mm	ØB mm	ØC mm	D mm	L mm	VE Stück

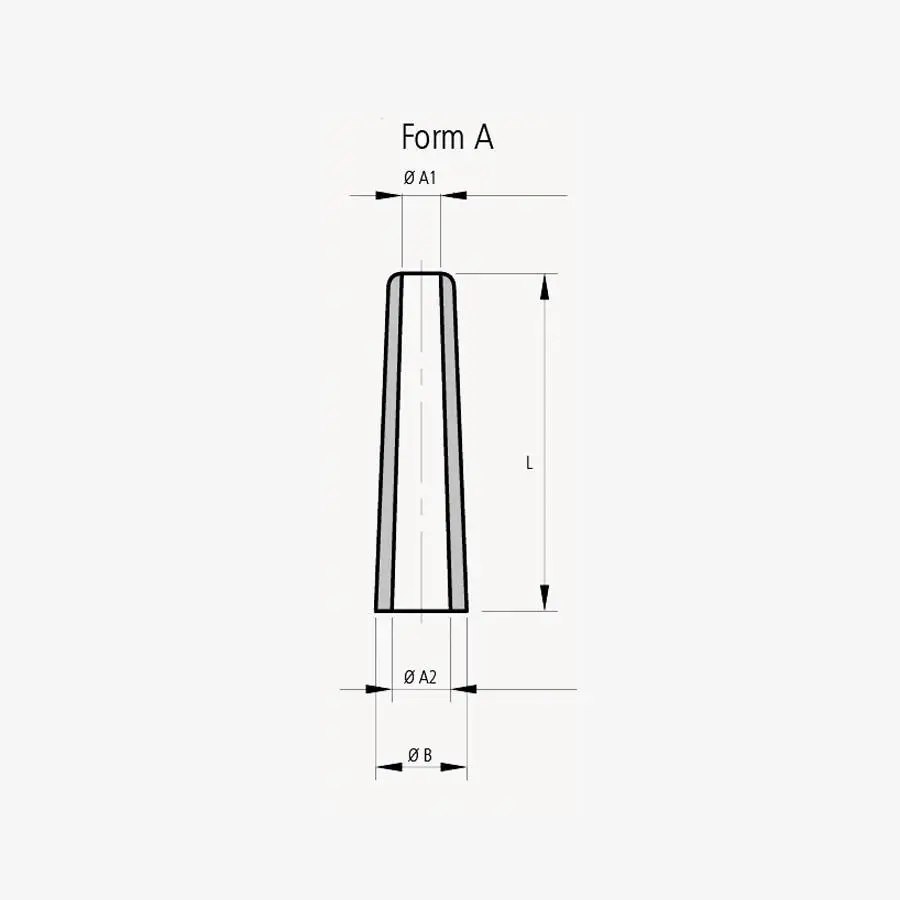

KT 190	56-010	A	1.8	2.7	4.7			20.0	100
KT 834	56-120	A	2.9	2.9	7.0			40.0	100
KT 401	56-201	A	3.0	4.5	7.0			26.0	100
KT 403	56-203	A	3.0	5.2	9.0			18.0	100
KT 402	56-202	A	3.5	5.0	9.5			23.0	100
KT 680	56-095	A	4.0	4.0	8.0			40.0	100
KT 833	56-119	A	4.3	4.3	8.3			40.0	100
KT 009	56-001	A	5.0	5.0	8.5			15.0	100
KT 318	56-058	A	6.0	6.3	11.0			28.0	100
KT 045	56-005	A	7.0	10.0	14.0			60.0	100
KT 164	56-018	A	7.0	7.0	12.8			80.0	50

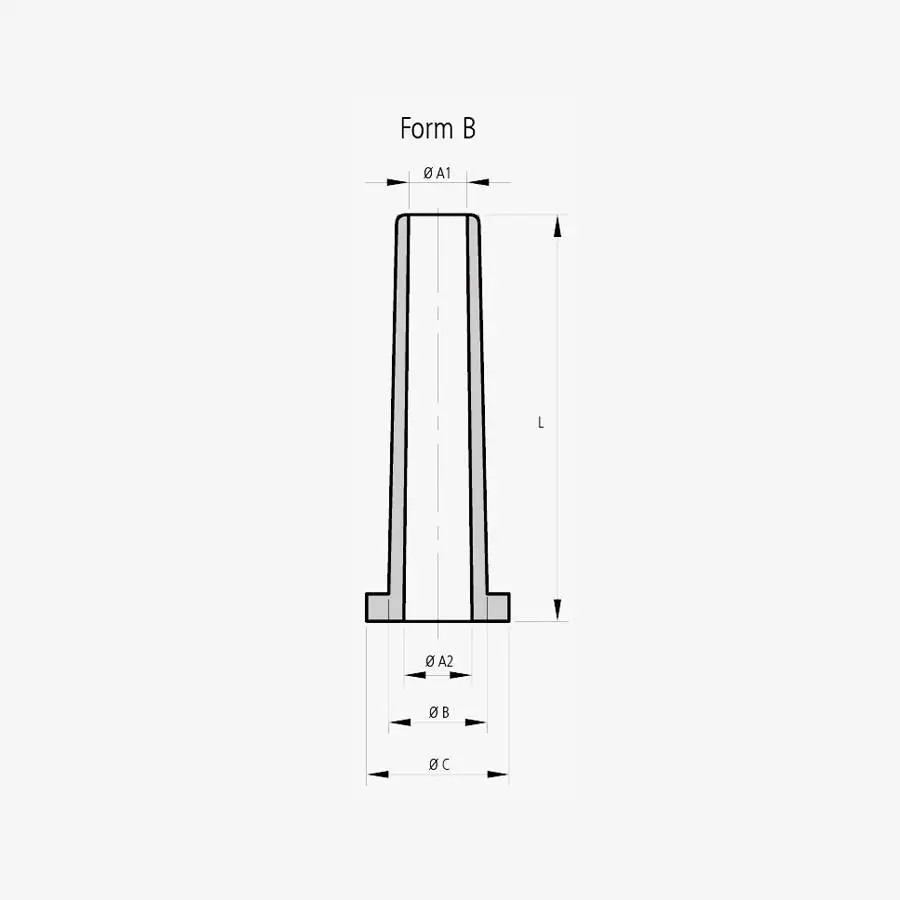

KT 760	56-213	B	2.5	2.5	6.2	8.0		22.0	100
KT 836	56-121	B	2.6	2.6	4.5	6.0		15.0	100
KT 721	56-003	B	3.1	3.1	6.2	8.0		22.0	100
KT 596	56-071	B	3.5	3.5	7.0	15.5		36.0	100
KT 649	56-075	B	4.0	4.0	6.0	8.0		22.0	100
KT 405	56-205	B	5.0	5.0	7.0	9.0		30.0	100
KT 043	56-004	B	5.0	5.0	7.0	9.0		51.0	100
KT 380	56-062	B	5.0	5.0	7.0	9.5		50.0	100
KT 756	56-085	B	5.0	6.6	13.4	17.5		90.0	50
KT 781	56-087	B	5.0	6.6	13.4	17.5		90.0	50
KT 832	56-118	B	5.0	12.0	14.8	16.5		54.5	100
KT 821	56-215	B	5.6	10.0	8.0	14.7		35.0	100
KT 737	56-080	B	6.0	7.6	13.4	17.5		90.0	50
KT 391	56-063	B	6.2	6.2	8.2	10.0		60.0	100
KT 538	56-064	B	6.5	6.5	10.0	14.0		60.0	100
KT 806	56-214	B	6.7	8.0	13.4	17.5		60.0	100
KT 169	56-019	B	7.0	7.0	12.0	13.5		95.0	100
KT 306	56-057	B	7.0	7.0	10.0	15.0		50.0	100
KT 625	56-219	B	7.0	7.0	12.0	16.0		34.0	100
KT 592	56-070	B	7.0	8.0	13.0	20.0		69.0	50
KT 170	56-020	B	7.5	7.5	12.0	13.5		95.0	100
KT 411	56-052	B	7.5	7.5	12.0	15.0		70.0	50
KT 579	56-066	B	7.5	7.5	10.0	14.0		60.0	50
KT 602*	56-072	B	7.6	7.6	13.4	17.5		90.0	50
KT 130	56-014	B	8.0	8.0	15.5	18.5		72.0	50
KT 383	56-056	B	8.0	8.5	11.4	15.0		50.5	100
KT 147	56-016	B	8.0	12.0	15.5	18.5		72.0	50
KT 171	56-021	B	8.2	8.2	12.0	13.5		95.0	100
KT 642	56-078	B	8.2	8.2	11.0	15.0		40.0	100
KT 692*	56-211	B	8.5	8.5	11.5	15.0		70.0	50
KT 172	56-022	B	9.4	9.4	12.0	13.5		95.0	100
KT 320	56-059	B	11.0	11.0	27.0	32.0		150.0	25
KT 329*	56-060	B	12.0	37.0	40.0	44.0		99.5	25
KT 748	56-084	B	13.0	14.0	22.0	26.0		80.0	50
KT 083	56-013	B	16.0	16.0	25.0	32.0		150.0	25

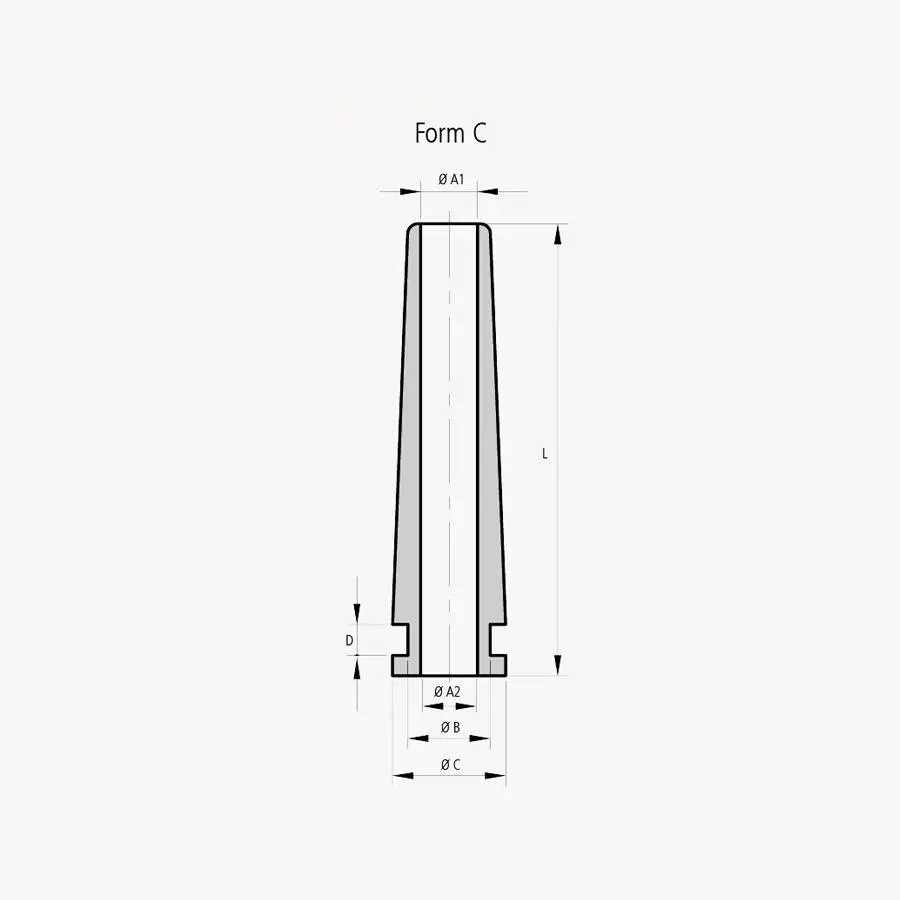

KT 595	56-034	C	3.0	7.0	8.5	14.0	2.0	32.0	100
KT 159	56-017	C	5.0	5.0	8.0	11.0	3.5	42.0	100
KT 608	56-073	C	5.0	8.0	10.0	12.5	2.0	41.0	100
KT 187	56-208	C	5.0	7.0	10.0	14.0	1.0	15.0	100
KT 354	56-061	C	6.0	6.0	8.3	12.0	0.8	22.8	100
KT 410	56-051	C	6.0	6.0	8.0	11.0	3.5	42.0	100
KT 679	56-261	C	6.0	6.0	9.0	14.0	2.5	21.5	100
KT 742	56-263	C	6.5	6.5	14.0	20.0	1.0	33.5	100
KT 131	56-015	C	7.0	8.8	13.0	18.0	1.0	84.0	50
KT 643	56-079	C	7.0	10.0	13.0	18.0	2.5	80.0	50
KT 672	56-092	C	7.0	8.8	13.0	18.0	1.0	84.0	50
KT 691*	56-210	C	7.0	7.0	9.0	11.0	3.5	42.0	100
KT 751	56-091	C	7.0	8.8	13.0	18.0	2.5	85.0	50
KT 412	56-053	C	7.5	7.5	14.0	18.5	2.0	82.0	50
KT 633	56-077	C	8.5	8.5	11.0	15.0	3.0	61.0	50
KT 651	56-076	C	9.5	9.5	14.5	17.5	3.0	80.0	100
KT 561	56-065	C	10.0	10.0	14.5	19.5	3.0	95.0	100
KT 693*	56-212	C	11.0	11.0	14.5	17.5	3.0	80.0	50
KT 049	56-008	C	11.0	15.0	20.0	30.0	3.0	77.0	50
KT 747	56-083	C	13.0	14.0	19.0	22.0	3.0	80.0	50
MB 900	56-144								100
*EPDM
