Cable glands and accessories
Locknuts GMK

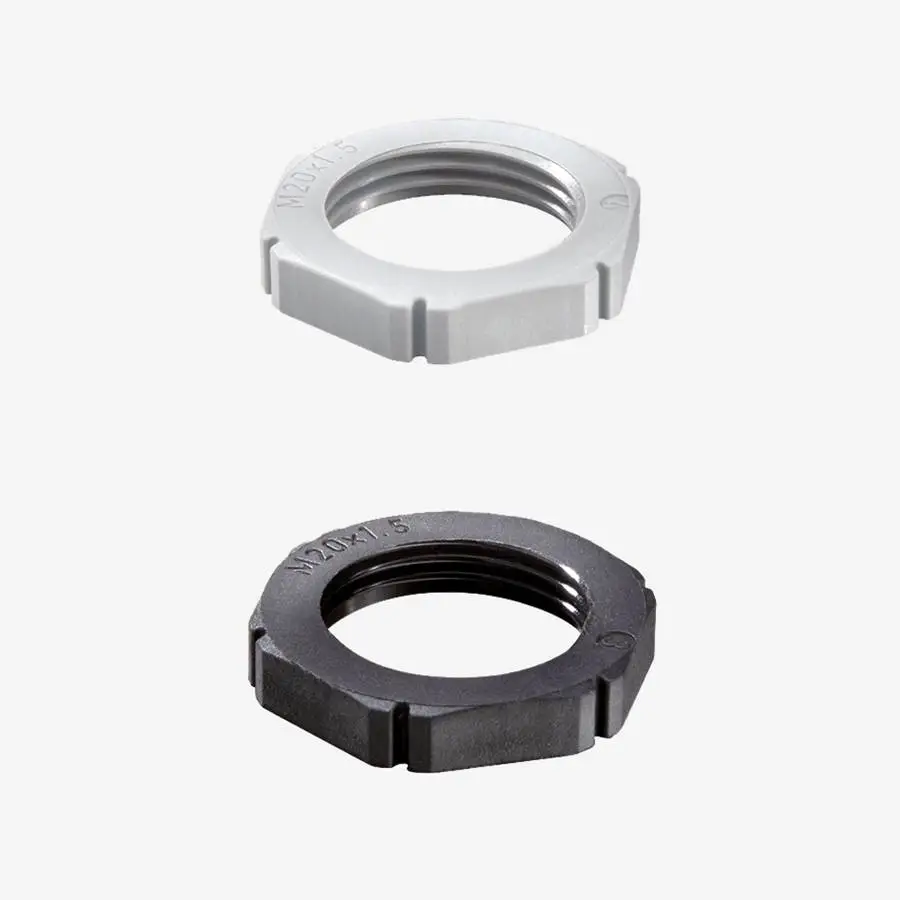

The GMK locknuts are used to secure a cable gland.
To request a product, please click on the corresponding item number in the table.
further versions available on request

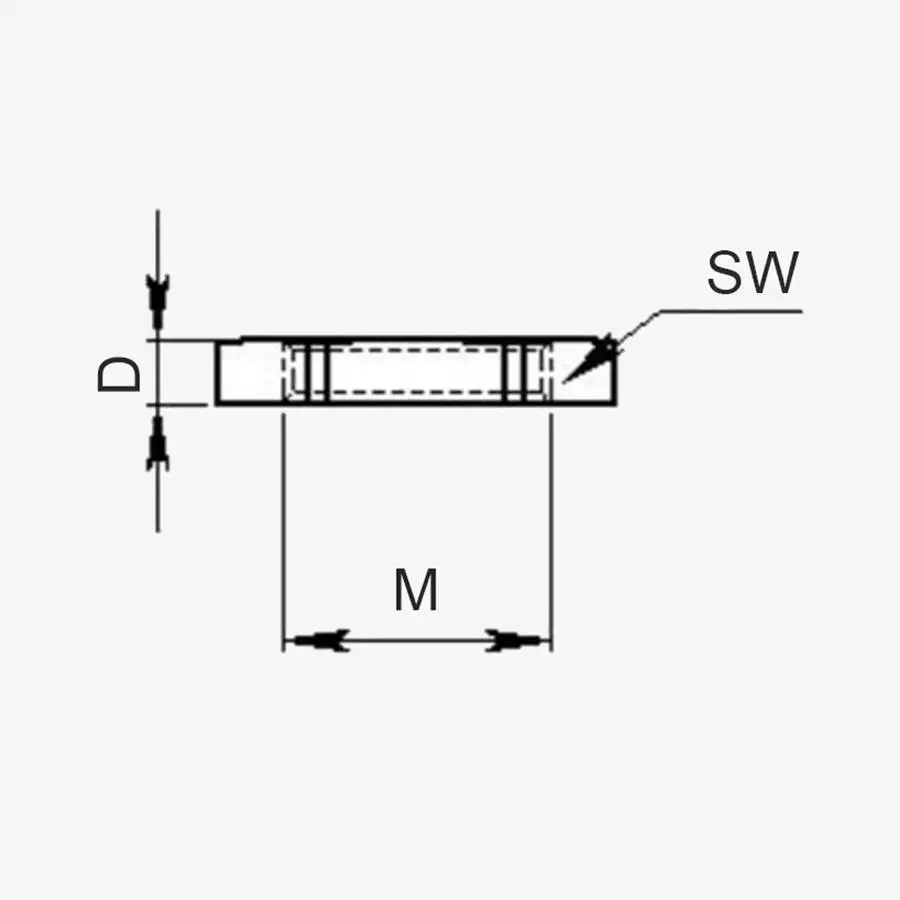

| Type | Part no. l.gray RAL 7035 | Part no. grey RAL 7001 | Part no. black RAL 9005 | Thickness mm | Width across flats mm | PU pcs. |
|---|---|---|---|---|---|---|
| GMK-M12 | 77-651 | 77-641 | 77-661 | 5.0 | 18.0 | 100 |
| GMK-M16 | 77-652 | 77-642 | 77-662 | 5.0 | 22.0 | 100 |
| GMK-M20 | 77-653 | 77-643 | 77-663 | 5.0 | 27.0 | 100 |
| GMK-M25 | 77-654 | 77-644 | 77-664 | 6.0 | 32.0 | 100 |
| GMK-M32 | 77-655 | 77-645 | 77-665 | 6.0 | 40.0 | 100 |
| GMK-M40 | 77-656 | 77-646 | 77-666 | 7.0 | 50.0 | 50 |
| GMK-M50 | 77-657 | 77-647 | 77-667 | 7.0 | 60.0 | 25 |
| GMK-M63 | 77-658 | 77-648 | 77-668 | 7.0 | 75.0 | 10 |
| GMK-PG7 | 77-600 | 77-620 | 5.0 | 19.0 | 100 | |
| GMK-PG9 | 77-601 | 77-621 | 5.0 | 22.0 | 100 | |
| GMK-PG11 | 77-602 | 77-622 | 5.0 | 24.0 | 100 | |
| GMK-PG13 | 77-603 | 77-623 | 6.0 | 27.0 | 100 | |
| GMK-PG16 | 77-604 | 77-624 | 6.0 | 30.0 | 100 | |
| GMK-PG21 | 77-605 | 77-625 | 7.0 | 36.0 | 100 | |
| GMK-PG29 | 77-606 | 77-626 | 7.0 | 46.0 | 50 | |
| GMK-PG36 | 77-607 | 77-627 | 8.0 | 60.0 | 25 | |
| GMK-PG42 | 77-608 | 77-628 | 8.0 | 65.0 | 25 | |
| GMK-PG48 | 77-609 | 77-629 | 8.0 | 70.0 | 10 |
