Sealing grommets
Sealing Grommets DX

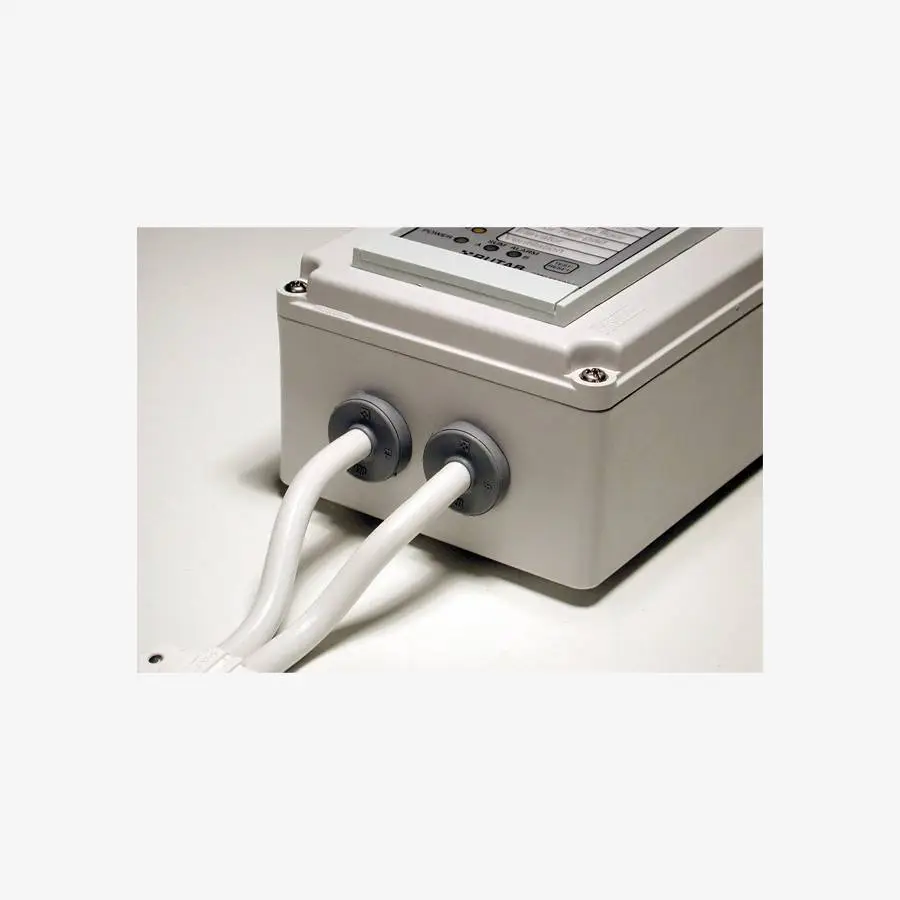

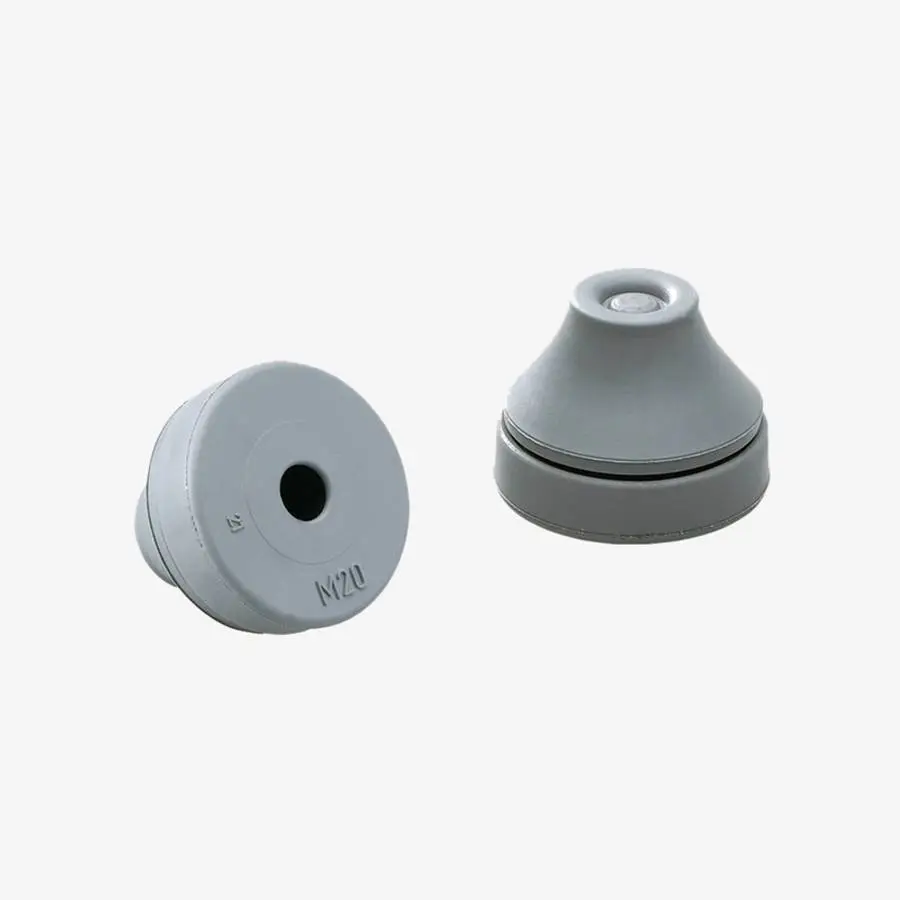

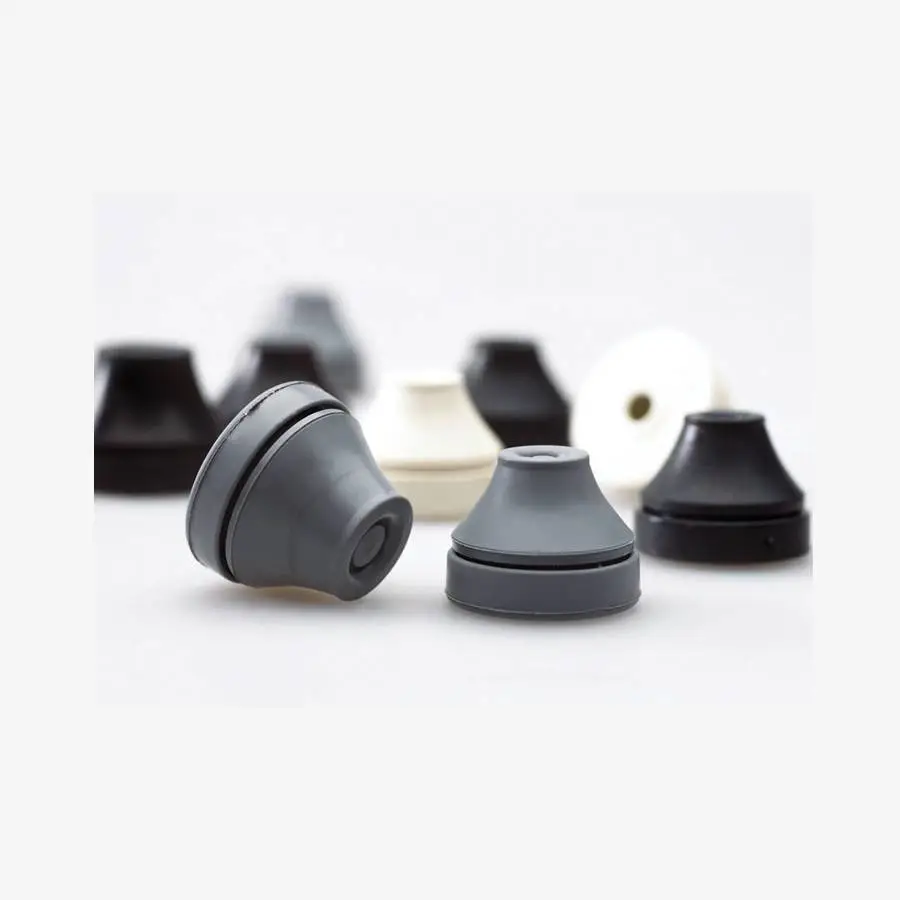

The DX grommets are very easy to handle. They do not require any tools and can therefore reduce assembling costs. To feed the cable through, simply pierce the membrane with the cable. The DX grommets enclose the cable securely on all sides.
To request a product, please click on the corresponding item number in the table.

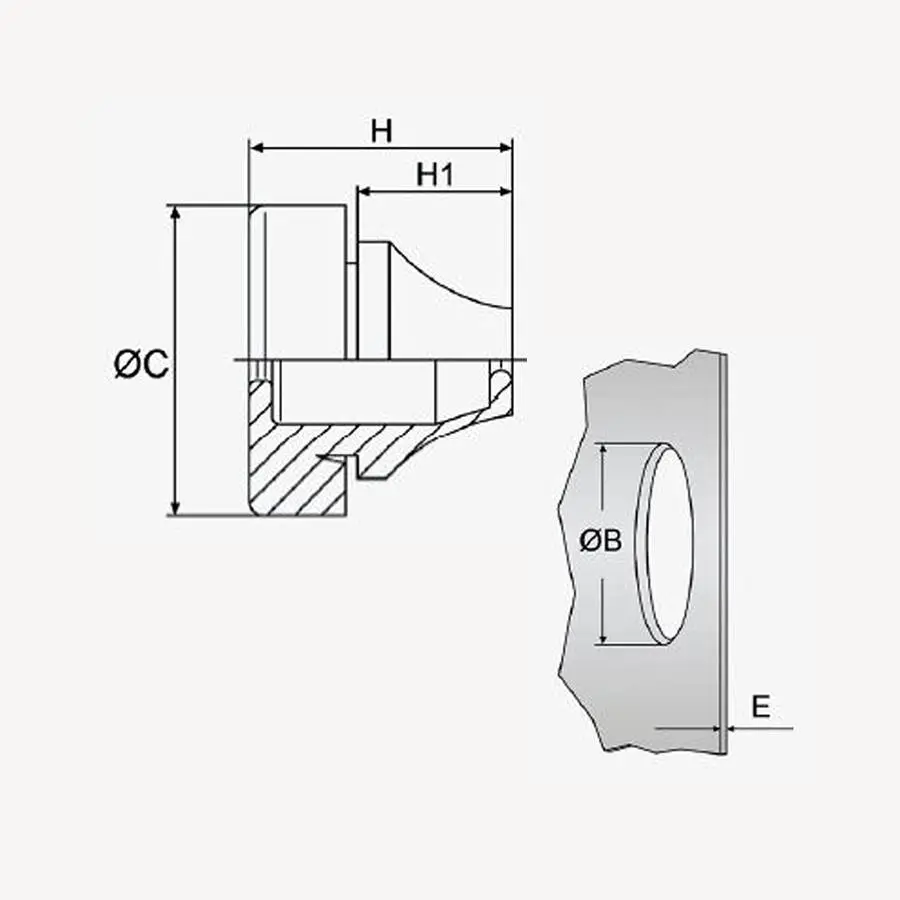

| Type | Part no. EPDM black | Part no. EPDM light gray | Part no. EPDM gray | Part no. CR black | Cable-Ø mm | Hole-ØB mm | Wall thickness E - mm | ØC mm | H mm | H1 mm | PU pcs. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DX-M12 | 52-610 | 52-630 | 52-600 | 52-610-C | 4,0 - 7,0 | 12.5 | 0,5 - 2,0 | 20.0 | 12.8 | 5.6 | 50 |
| DX-M12/F | 52-647 | 52-648 | 52-649 | 52-647-C | 4,0 - 7,0 | 12.5 | 2,0 - 5,0 | 20.0 | 12.8 | 5.6 | 50 |
| DX-M16 | 52-611 | 52-631 | 52-601 | 52-611-C | 5,0 - 9,0 | 16.5 | 1,0 - 4,0 | 21.0 | 17.7 | 11.0 | 50 |
| DX-M20 | 52-612 | 52-632 | 52-602 | 52-612-C | 8,0 - 12,0 | 20.5 | 1,0 - 4,0 | 25.5 | 20.0 | 13.4 | 50 |
| DX-M25 | 52-613 | 52-633 | 52-605 | 52-613-C | 11,0 - 16,0 | 25.5 | 1,0 - 4,0 | 30.5 | 21.3 | 15.3 | 50 |
| DX-M32 | 52-614 | 52-634 | 52-606 | 52-614-C | 15,0 - 20,0 | 32.5 | 1,0 - 4,0 | 38.5 | 24.6 | 18.6 | 25 |
| DX-M40 | 52-615 | 52-635 | 52-607 | 52-615-C | 19,0 - 28,0 | 40.5 | 1,0 - 4,0 | 48.5 | 29.5 | 21.7 | 25 |
| DX-M50 | 52-616 | 52-636 | 52-608 | 52-616-C | 27,0 - 35,0 | 50.5 | 1,0 - 4,0 | 60.5 | 34.8 | 25.0 | 10 |
| DX-M63 | 52-637 | 52-638 | 52-639 | 52-637-C | 34,0 - 45,0 | 63.5 | 1,0 - 4,0 | 73.5 | 40.0 | 28.9 | 10 |
| DX-PG7 | 52-620 | 52-640 | 52-609 | 52-620-C | 3,0 - 5,0 | 13.0 | 0,5 - 2,0 | 20.0 | 12.6 | 5.4 | 50 |
| DX-PG9 | 52-621 | 52-641 | 52-617 | 52-621-C | 5,0 - 7,0 | 16.0 | 1,0 - 4,0 | 21.0 | 17.8 | 10.3 | 50 |
| DX-PG11 | 52-622 | 52-642 | 52-618 | 52-622-C | 7,0 - 10,0 | 19.0 | 1,0 - 4,0 | 24.0 | 19.8 | 12.7 | 50 |
| DX-PG16 | 52-623 | 52-643 | 52-619 | 52-623-C | 10,0 - 14,0 | 23.0 | 1,0 - 4,0 | 28.0 | 21.6 | 14.7 | 50 |
| DX-PG21 | 52-624 | 52-644 | 52-627 | 52-624-C | 14,0 - 20,0 | 29.0 | 1,0 - 4,0 | 35.0 | 24.6 | 17.6 | 25 |
| DX-PG29 | 52-625 | 52-645 | 52-628 | 52-625-C | 20,0 - 26,0 | 38.0 | 1,0 - 4,0 | 46.0 | 28.5 | 20.0 | 25 |
| DX-PG36 | 52-626 | 52-646 | 52-629 | 52-626-C | 26,0 - 35,0 | 48.0 | 1,0 - 4,0 | 58.0 | 34.9 | 23.9 | 10 |
